XJTAG supplies a range of test extension hardware products which are active products designed to work with its range of Test Controllers, and adaptors to allow easy connection to your hardware.

XJTAG hardware accessory - XJIO test extension board XJIO Boards

Expansion unit to improve the test coverage of your Device Under Test (DUT). 208 I/O, 8 A/D, 8 D/A, buttons, LEDs, optional RS-232/UART.

Learn more
XJTAG hardware accessory - XJComms board XJComms Card

An add-on to the XJIO Boards offering a test solution for common automotive interface signals (CAN, RS-485/RS-422, FlexRay, LIN).

Learn more
XJTAG hardware accessory - XJAccelerator v2 XJAccelerator

Multipurpose unit that can be integrated with your XJTAG system to facilitate and accelerate programming functions as well as extending test coverage on a DUT.

Learn more
XJTAG hardware accessory - XJAccelerator SODIMM XJAccelerator SODIMM

A multipurpose FPGA module, in SODIMM form factor, to facilitate and accelerate programming functions and extend test coverage as part of a test fixture assembly.

Learn more
XJTAG hardware accessory - XJExtender Controller + Target Pair XJExtender Boards

XJTAG’s recommended solution to overcome signal integrity issues when connecting a JTAG controller to a DUT up to 10 m away. LVDS.

Learn more
XJTAG hardware accessory - XJIsolator board XJIsolator

Galvanic isolation protection between a UUT and a JTAG controller. Can be easily mounted inside a test fixture.

Learn more
XJTAG hardware accessory - XJXDP board / LVDS XJXDP Adaptor

Intel® XDP header, low impedence. Provides signal matching to improve JTAG performance. Supports non-XDP applications.

Learn more
XJTAG hardware accessory - Surge Protection Board XJTAG Surge Protection Board

Provides safeguards against excessive inrush current, over-current and over-voltage for the DUT.

Learn more

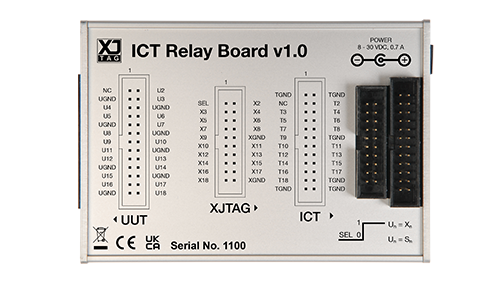

XJTAG hardware accessory - ICT Relay Board ICT Relay Board

Allows a JTAG controller and another piece of test/programming equipment access to a UUT’s TAP control signals on a DUT, while ensuring the DUT is fully isolated.

Learn more
XJTAG hardware accessory - ICT Extension board ICT Expansion Board

Provides four channels of I/O for use with flying probe or other ICT systems. Add multiple units to increase the number of I/O channels.

Product code: XJTAG-IOB-0010

XJTAG hardware accessory - Termination & Protection Board v2 Termination and Protection Board

Provides series termination to signals to/from an XJLink2 to improve speed, reliability and transient protection

Schematic diagram
Product code: XJTAG-XJA-0021

Learn more

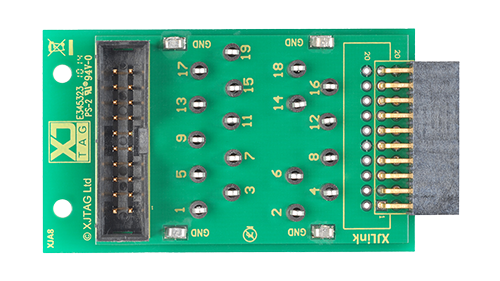

XJTAG accessory - Signal Breakout Board Signal Breakout Board

Allows oscilloscope or test meter access to the signals used when connecting the XJLink2 JTAG Controller to the UUT.

Schematic diagram
Product code: XJTAG-XJA-0080

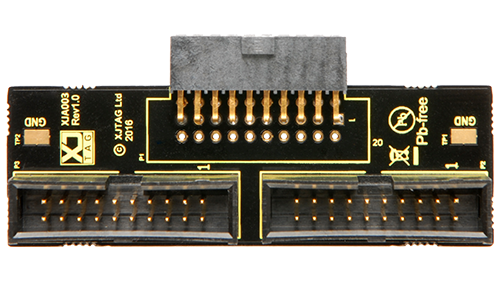

XJTAG hardware accessory - Splitter, Signal Integrity Board, Elbow adaptor Splitter / Signal Integrity Board, Elbow

20-way 0.1” into two 20-way 0.1” connectors. Improves signal integrity by putting ‘hard grounds’ between all active signals.

Schematic diagram
STEP model
Product code: XJTAG-XJA-0030

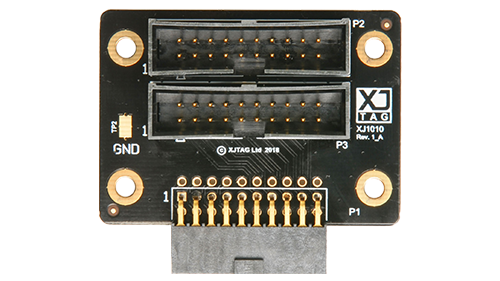

XJTAG hardware accessory - Splitter, Signal Integrity Board, SFF adaptor Splitter / Signal Integrity Board SFF

20-way 0.1” into two 20-way 0.1” connectors. ‘Hard grounds’ between active signals. Small Form Factor. Fits XJQuad.

Schematic diagram
Product code: XJTAG-XJA-0031

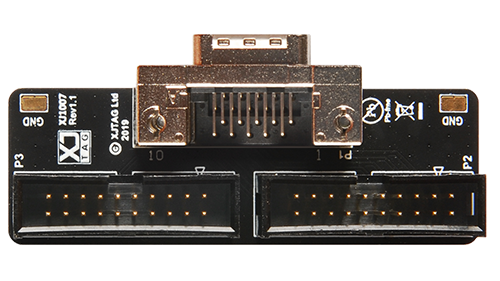

XJTAG hardware accessory - Splitter, Signal Integrity Board, PXI adaptor Splitter / Signal Integrity Board, PXI

20-way MDR connector into two 20-way 0.1” connectors. ‘Hard grounds’ between active signals. Fits PXI-XJLink2.

Schematic diagram
Product code: XJTAG-XJA-0032

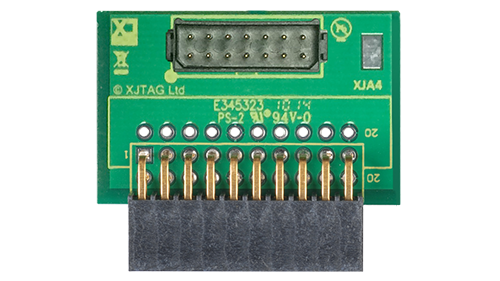

XJTAG hardware accessory - Xilinx Adaptor XJA-0040 Xilinx Adaptor

20-way 0.1” connector to a standard Xilinx 14-way 2 mm connector.

Schematic diagram
Product code: XJTAG-XJA-0040

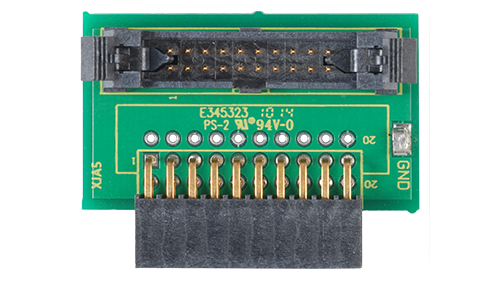

XJTAG hardware accessory - 0.1” to 2 mm Adaptor XJA-0050 0.1” to 2 mm Adaptor

20-way 0.1” connector to a 20-way 2 mm connector.

Schematic diagram
Product code: XJTAG-XJA-0050

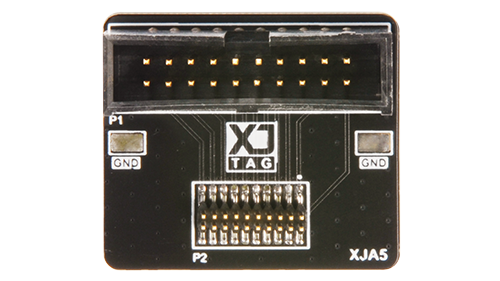

XJTAG hardware accessory - 0.1” to 1.27 mm Adaptor XJA-0060 0.1” to 1.27 mm Adaptor

20-way 0.1” connector to a 20-way 1.27 mm connector.

Schematic diagram
Product code: XJTAG-XJA-0060

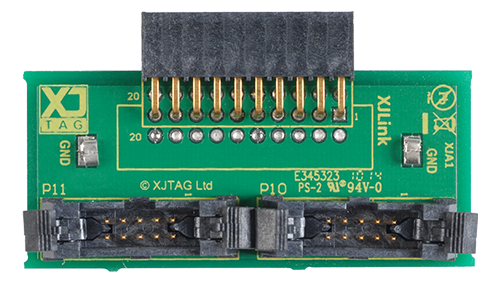

XJTAG hardware accessory - 2x 10-way 2 mm Adaptor XJA-0010 2x 10-way 2 mm Adaptor

20-way 0.1” connector into two 10-way 2 mm connectors.

Schematic diagram
Product code: XJTAG-XJA-0010

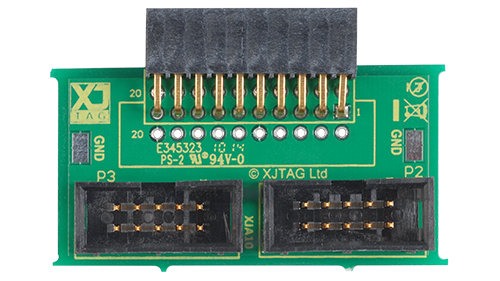

XJTAG hardware accessory - 2 x 10-way 0.1” Adaptor XJA-0100 2x 10-way 0.1” Adaptor

20-way 0.1” connector into two 10-way 0.1” connectors.

Schematic diagram
Product code: XJTAG-XJA-0100
