Introduction

XJDemo is a fully populated demonstration board providing a kick-start to your understanding of XJTAG products.

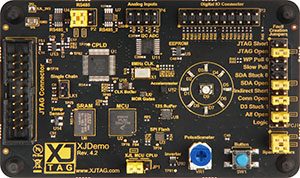

XJDemo Board

The XJDemo board can be requested when purchasing any XJTAG system. It is provided free of charge and comes complete with a tutorial demonstrating all the features of the XJTAG system.

The XJDemo board is supplied pre-assembled and fully tested and includes the following:

Intel MAX V 5M40Z CPLD
Kinetis K22F Cortex-M4 processor
9 LEDs
Pushbutton
8M-bit SPI NOR Flash
2K-bit serial EEPROM
4M-bit static RAM
RS-485 transceivers
8 channel serial ADC
3-axis linear Accelerometer
8 MHz Oscillator
Standard logic devices – 4 channel 3-state buffer, 4-bit fanout buffer, NOR gates and inverter
Debug links (simulate open and short circuits)
JTAG connector ( XJLink / PXI )
A full XJTAG tutorial
A full XJDeveloper project
A sample application STAPL/JAM file
Circuit Diagram
BSDL files and ODB++ netlist/layout data

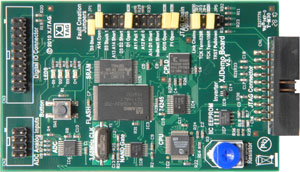

Older systems were supplied with XJDemo v3 ( circuit diagram )
