XJIO-PCI Board
The XJIO-PCI board is a discontinued test expansion unit that is no longer available to purchase. XJTAG recommends the XJIO Board.

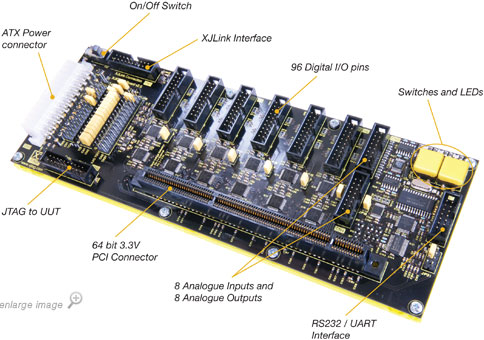

Features
- 96 digital I/O pins with user-configurable voltage range – 1.8V to 3.3V (5V tolerant)
- On-board 8 channel ADC and DAC
- Fully expandable to meet your needs
- Switches and LEDs for user interaction
- ‘Black box’ testing for non-JTAG boards
- Reusable, replacing multiple custom test jigs
- Standard IDC connectors
- ATX power connector
- 64 bit 3.3V PCI connector
- RS232 / UART
Reference code: XJTAG-IOP-0011.
